مهر روغن TC TYPE

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing

تمام دسته ها

مهر و موم روغن کاهش دهنده دنده

مهر روغن سفارشی

با ما تماس بگیرید

Miss. Elen

xiangteoilseal@163.com

18131923768

حالا تماس بگیرید

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing

نام تجاری:	CCO
شماره مدل:	1
مقدار تولیدی:	10 عدد
قیمت:	قابل مذاکره
جزئیات بسته بندی:	صادرات بسته بندی استاندارد
شرایط پرداخت:	L/C، D/A، D/P، T/T، وسترن یونیون، مانی گرام

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

قطر شفت:

6mm-300mm

قطر بیرونی:

10mm-310mm

شکل:

گرد

قطر بیرونی:

بر اساس سایز متفاوت است

فشار:

فشار کم تا متوسط

محدوده دما:

-40 تا 120 درجه سانتی گراد

محدوده فشار:

0-0.03 مگا پاسکال

روش نصب:

Fit را فشار دهید

قابلیت ارائه:

100000 قطعه در ماه

برجسته کردن:

TC TYPE oil seal for automotive,industrial oil seal for construction,TC TYPE oil seal with warranty

industrial oil seal for construction

TC TYPE oil seal with warranty

توضیحات محصول

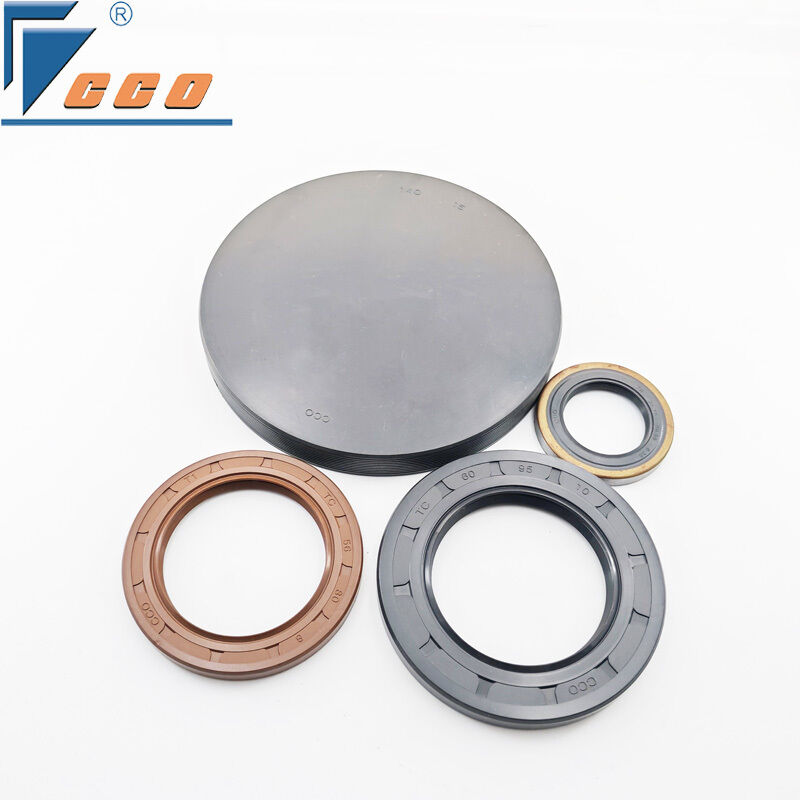

1. Product Overview

This series covers TC, SC, TB, SB, EC radial shaft oil seals (ISO 6194 compliant), designed for rotary sealing to retain lubricants and block contaminants. Each type differs in lip count, skeleton coating, spring design, and pressure resistance, covering low-to-medium pressure, general industrial, automotive, and aftermarket applications worldwide.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0

2. Core Type Definitions & Structural Features

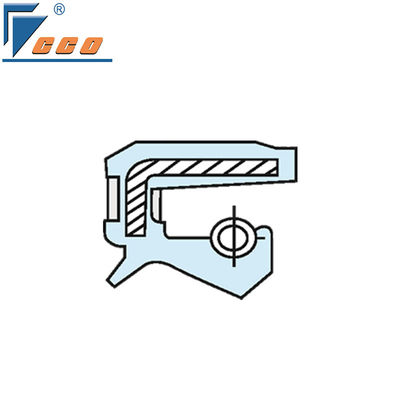

TC: Double lip (main seal + dust lip), full rubber-coated steel skeleton, spring-loaded primary lip; best for dusty environments, universal fit.

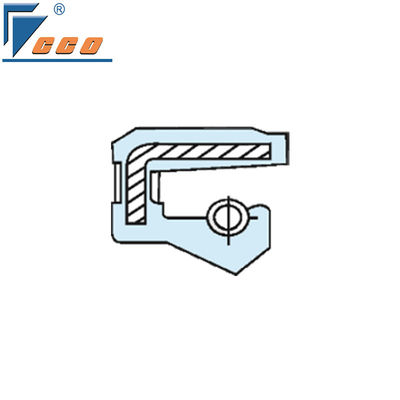

SC: Single lip, full rubber-coated skeleton, spring-loaded; cost-effective, clean indoor applications, no dust requirement.

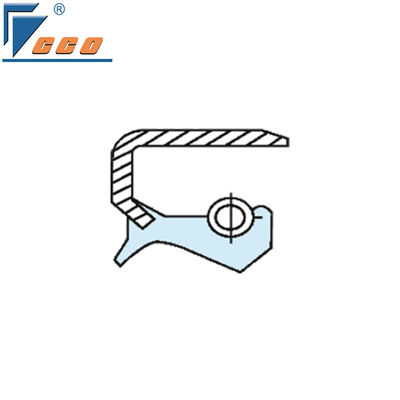

TB: Single lip, bare metal (uncoated) steel skeleton, spring-loaded; high rigidity, stable fit, gearbox/pump internal use.
SB: Single lip, bare metal skeleton, springless; low friction, high-speed light-load, low-cost replacement.
EC: Double lip, thin rubber-coated skeleton, reinforced lip; medium pressure, anti-extrusion, hydraulic/pneumatic systems.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 1

3. Performance

Type	Lip Count	Skeleton Coating	Spring	Max Pressure (Dynamic)	Temp Range (NBR)	Max Speed	Key Feature
TC	2 (Main+Dust)	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Dust-proof, universal
SC	1	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Cost-effective, clean
TB	1	Bare Metal	Yes	≤0.04 MPa	-30~+120°C	≤12 m/s	High rigidity, stable
SB	1	Bare Metal	No	≤0.02 MPa	-30~+100°C	≤20 m/s	Low friction, high speed
EC	2	Thin Rubber	Yes	≤0.1 MPa	-30~+130°C	≤12 m/s	Medium pressure, anti-extrusion

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 2

4. Key Advantages

Full type coverage: One supplier for all general sealing needs, reduces procurement complexity.
ISO standard dimensions (φ6~φ200mm), compatible with global OEM/aftermarket.
Material options: NBR (standard), FKM (high temp), EPDM (water/steam) available.
Easy press-fit installation, suitable for automated assembly lines.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 3

5. Typical Applications

Automotive: Crankshaft, camshaft, gearbox, wheel hub.
Industrial: Motors, fans, pumps, gearboxes, agricultural machinery.
Aftermarket: Universal replacement for light/medium equipment.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0
